Full / Half Thread Plain Carbon Steel Hexagon Head Bolts With Fine Pitch DIN961 EN ISO8676

Brand Name : YingYan

Model Number : M10-M20

Certification : ISO9000

Place of Origin : JIANG SU PROVINCE CHINA

MOQ : 1000pieces

Price : Negotiable

Packaging Details : Small Boxes, Plastic Bags, Bulk in Cartons,

Name : Hexagon head bolts with fine pitch thread

Standard : GB/DIN/ASME/EN/ISO&etc.

Materials : Carbon steelQ195,35K;

Surface treatmentment : Plain,Polishing

Grade : 4.8/8.8/ 10.9

Size : M10-M20/According your requirements

Length : 18mm-55mm/According your requirements

Contact Now

DIN961 EN ISO8676 Full/Half Thread Carbon Steel Hexagon Head Bolts With Fine Pitch Thread Grade 4.8,6.8,8.8 Plain



Full / Half Thread Plain Carbon Steel Hexagon Head Bolts With Fine Pitch DIN961 EN ISO8676

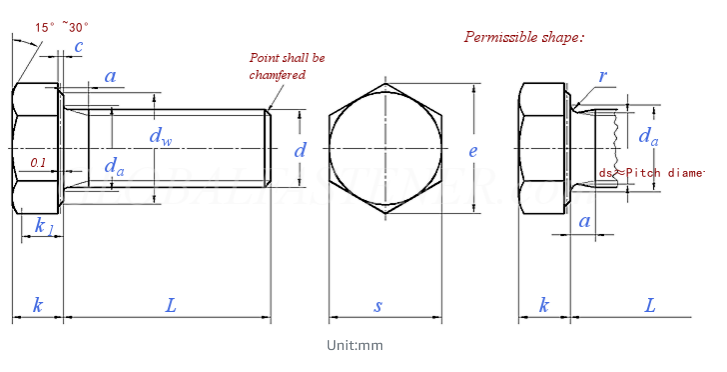

Screw Thread M8 M10 M12 M14 M16 M18 M20 M22 M24
d
P Pitch Fine thread-1 1 1 1.5 1.5 1.5 2 1.5 2 2
Fine thread-2 - 1.25 1.25 - - 1.5 2 1.5 1.5
a max 3 3.75 4.5 4.5 4.5 6 6 6 6
c min 0.15 0.15 0.15 0.15 0.2 0.2 0.2 0.2 0.2
max 0.6 0.6 0.6 0.6 0.8 0.8 0.8 0.8 0.8
da max 9.2 11.2 13.7 15.7 17.7 20.2 22.4 24.4 26.4
dw Grade A min 11.6 15.6 17.4 20.5 22.5 25.3 28.2 30 33.6
Grade B min 11.4 15.4 17.2 20.1 22 24.8 27.7 29.5 33.2
e Grade A min 14.38 18.9 21.1 24.49 26.75 30.14 33.53 35.72 39.98
Grade B min 14.2 18.72 20.88 23.91 26.17 29.56 32.95 35.03 39.55
k Nominal Size 5.3 6.4 7.5 8.8 10 11.5 12.5 14 15
Grade A min 5.15 6.22 7.32 8.62 9.82 11.28 12.28 13.78 14.78
max 5.45 6.58 7.68 8.98 10.18 11.72 12.72 14.22 15.22
Grade B min 5.06 6.11 7.21 8.51 9.71 11.15 12.15 13.65 14.65
max 5.54 6.69 7.79 9.09 10.29 11.85 12.85 14.35 15.35
k1 min 3.54 4.28 5.05 5.96 6.8 7.8 8.5 9.6 10.3
r min 0.4 0.4 0.6 0.6 0.6 0.6 0.8 0.8 0.8
s max=nominal size 13 17 19 22 24 27 30 32 36
Grade A min 12.73 16.73 18.67 21.67 23.67 26.67 29.67 31.61 35.38
Grade B min 12.57 16.57 18.48 21.16 23.16 26.16 29.16 31 35
Weight of per 1000 steel products(≈kg)       - - - - - - - - -
Screw Thread M27 M30 M33 M36 M39 M42 M45 M48 M52
d
P Pitch Fine thread-1 2 2 2 3 3 3 3 3 3
Fine thread-2 - - - - - - - - -
a max 6 6 6 9 9 9 9 9 9
c min 0.2 0.2 0.2 0.2 0.3 0.3 0.3 0.3 0.3
max 0.8 0.8 0.8 0.8 1 1 1 1 1
da max 30.4 33.4 36.4 39.4 42.4 45.6 48.6 52.6 56.6
dw Grade A min - - - - - - - - -
Grade B min 38 42.7 46.6 51.1 55.9 59.9 64.7 69.4 74.2
e Grade A min - - - - - - - - -
Grade B min 45.2 50.85 55.37 60.79 66.44 71.3 76.95 82.6 88.25
k Nominal Size 17 18.7 21 22.5 25 26 28 30 33
Grade A min - - - - - - - - -
max - - - - - - - - -
Grade B min 16.65 18.28 20.58 22.08 24.58 25.58 27.58 29.58 32.5
max 17.35 19.12 21.42 22.92 25.42 26.42 28.42 30.42 33.5
k1 min 11.7 12.8 14.4 15.5 17.2 17.9 19.3 20.9 22.8
r min 1 1 1 1 1 1.2 1.2 1.6 1.6
s max=nominal size 41 46 50 55 60 65 70 75 80
Grade A min - - - - - - - - -
Grade B min 40 45 49 53.8 58.8 63.1 68.1 73.1 78.1
Weight of per 1000 steel products(≈kg)       - - - - - - - - -



Advantages:

  1. Fine pitch bolts are commonly used in situations requiring high-strength connections. The fine pitch design enables the bolt to disperse the force over a smaller contact area, thereby increasing the strength per unit area. This makes the bolt capable of withstanding higher stress and having higher bearing capacity when subjected to the same load.
  2. The design of fine pitch threads allows for a tighter fit between the bolt and nut, reducing clearances and looseness during the assembly process, improving assembly precision, and ensuring the stability and reliability of the connection.
  3. The fine pitch design reduces the clearance in the tight fit, enhances sealing capability, and is suitable for applications requiring sealing.
  4. The hexagonal head design offers superior grip and torque transmission efficiency, making it easier to manipulate the bolt with tools like wrenches or screwdrivers during installation and disassembly processes.

Characteristics:

  1. Fine Pitch Design: As mentioned, the fine pitch thread is the primary characteristic of this bolt, providing the aforementioned advantages.
  2. Hexagon Head: The hexagon head design ensures stability during operation and easy rotation with tools.
  3. Good Interchangeability: Following unified international standards, these bolts have good interchangeability, making it convenient for users to select and replace them.

Applications:

  1. High-Precision Equipment: Due to the high precision and excellent sealing performance of fine pitch bolts, they are often used in equipment requiring precise connections, such as precision instruments and aerospace equipment.
  2. Vibration Environments: Fine pitch bolts' high strength and superior locking performance make them suitable for applications subject to vibration and impact, such as automobiles, motorcycles, and ships.
  3. Sealing Applications: The tight fit of fine pitch bolts makes them particularly suitable for sealing applications, such as pipelines and fuel tanks.









Product Tags:

Carbon Steel Hexagon Head Bolts



Plain Hexagon Head Bolts



Half Thread Hex Head Bolts
